CAPABILITIES

Your Idea.
Our Capability.
Advantage Delivered.

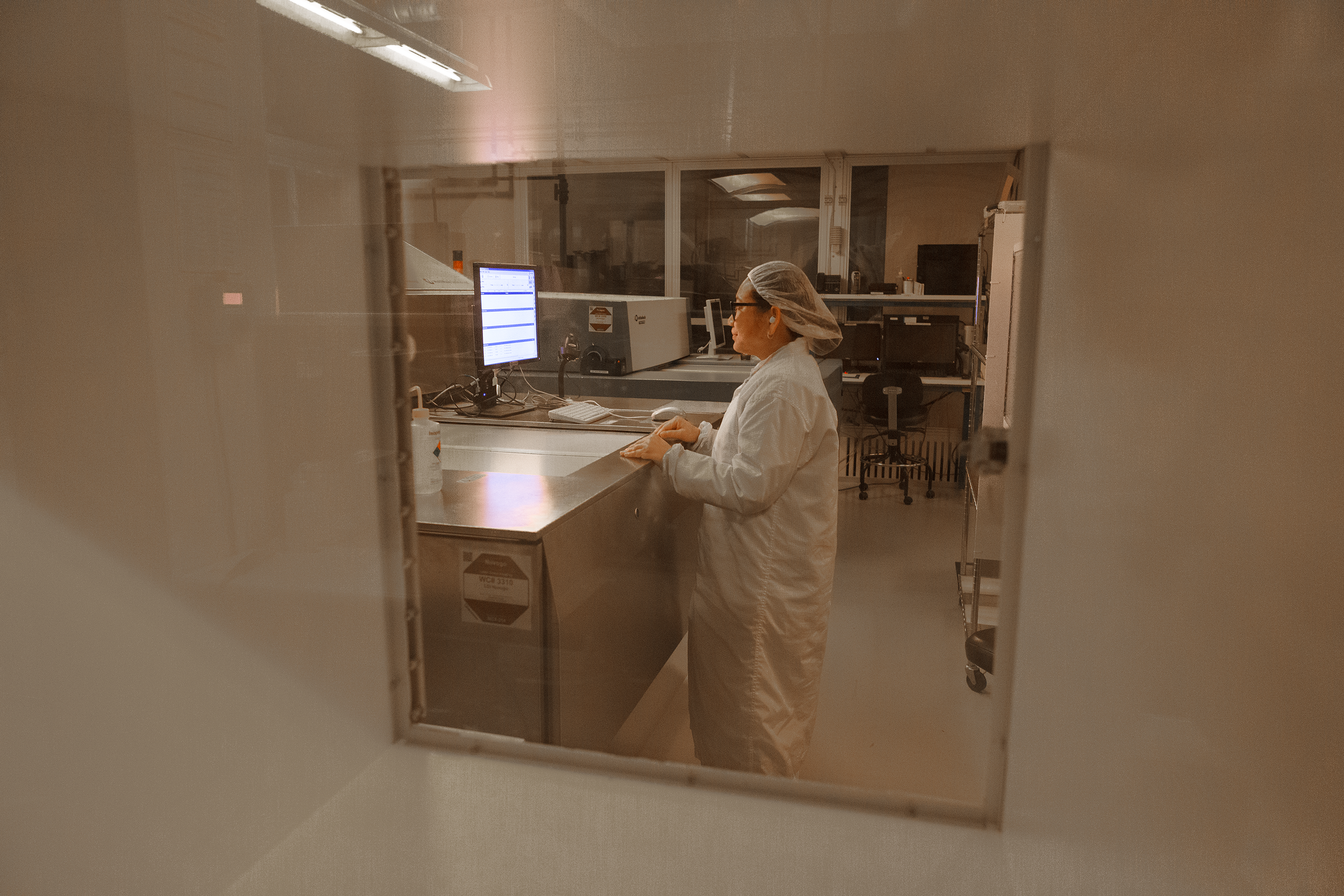

A person wearing a lab coat, hairnet, and glasses working at a computer in a laboratory or cleanroom, viewed through a window.

We fabricate to your specifications while contributing DFM and integration expertise on HDI flex circuits, laser drilling, and cutting on thin materials. MicroConnex operates within the ISO 9001 framework to ensure quality and consistency from proto to manufacturing.

Choose MicroConnex as your flex circuit supplier, and see how your design can gain a competitive advantage from our direct experience in these industries:

  1. Medical devices

  2. Biosensors and implants

  3. Ultrasound and ultrasonic sensors

  4. Wearable technology

  5. Integrated circuit testing

Inquire now
Inquire now

Download our pdf capabilities & Guidelines chart

View this downloadable table of our capabilities, including the types of circuits we work with and the materials we use.

Complete the form to access this PDF

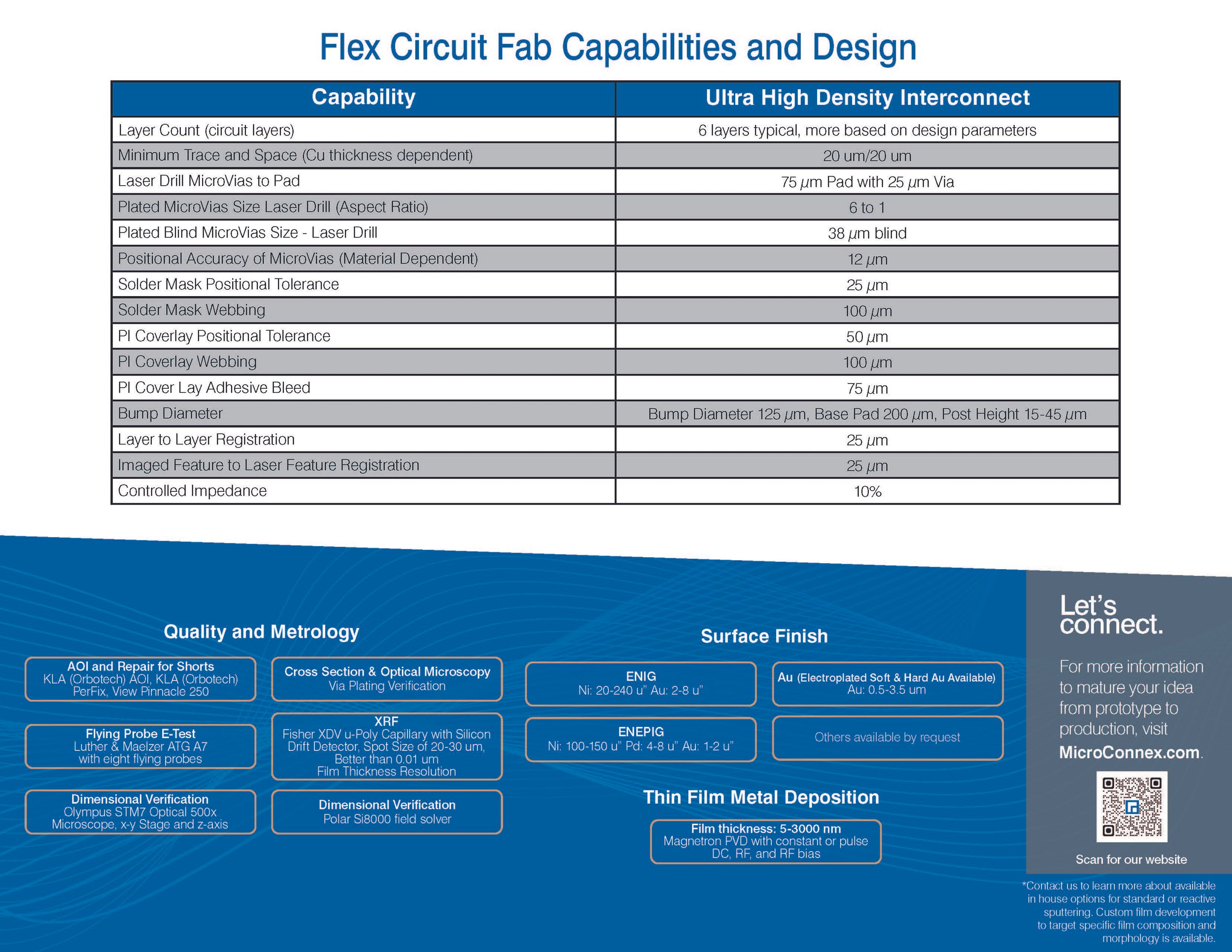

Table titled 'Flex Circuit Fab Capabilities and Design' listing various technical specifications and capabilities for ultra high-density interconnects, including layer count, trace thickness, laser drill details, positional accuracy, and material tolerances, with a QR code and additional text about microelectronics manufacturing.

Sputtering is a micro-fabrication process used to deposit thin optical films, barrier and adhesion layers, and to create embedded components like resistors, sensors, and implantable electrodes.

thin film deposition.

The MicroConnex thin film work center specializes in high-quality thin film deposition for custom manufacturing and R&D using DC, pulsed DC, and RF magnetron sputtering. Our automated PVD systems deposit metals, metal oxides, and semiconductors with precise control, uniformity, and full process tracking on substrates up to 6×6 inches and 3 μm thick. Films can be applied as blanket coatings or patterned using photolithography or shadow masks.

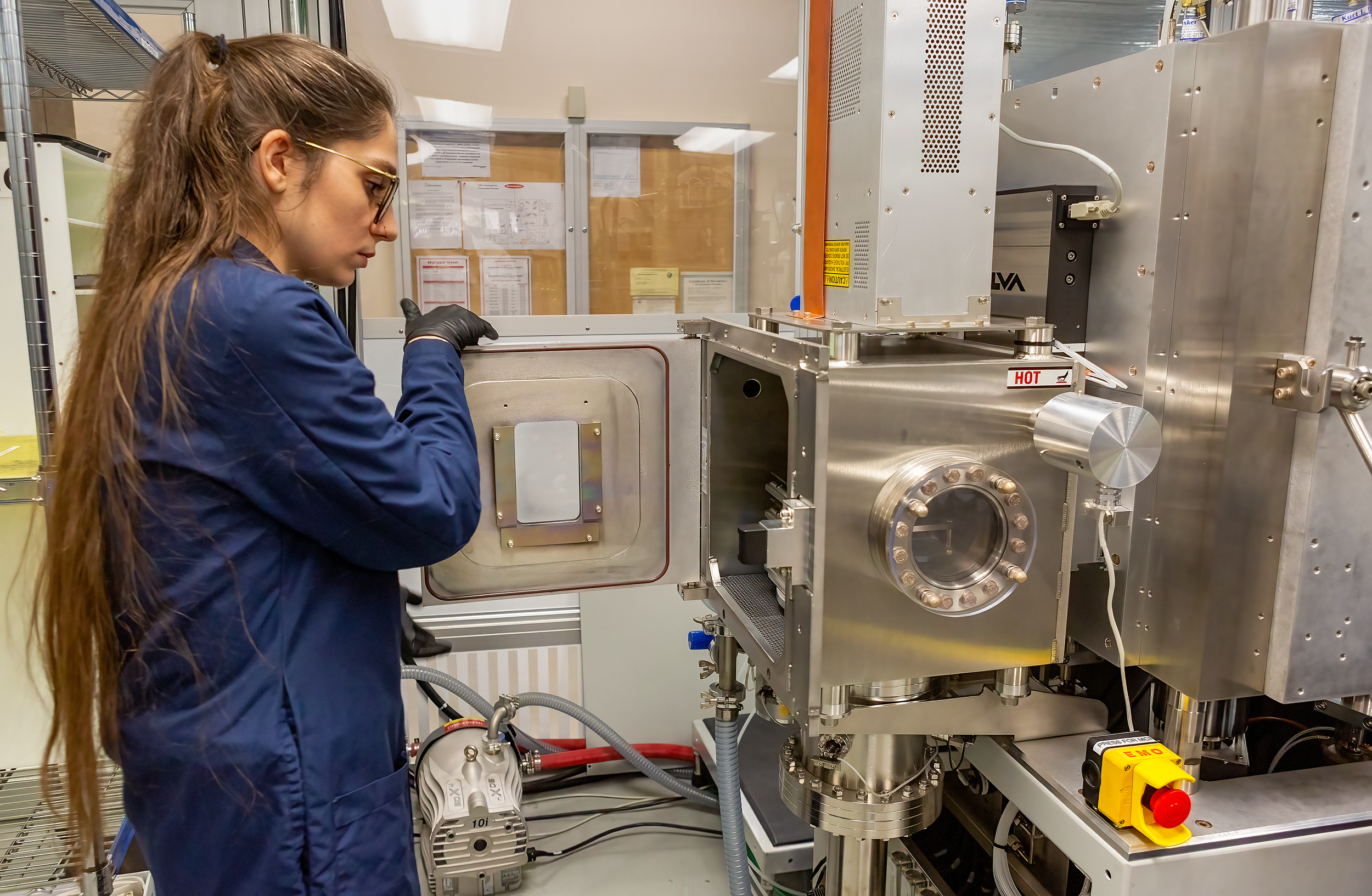

A woman in safety glasses and a blue lab coat working with a large scientific instrument in a laboratory.

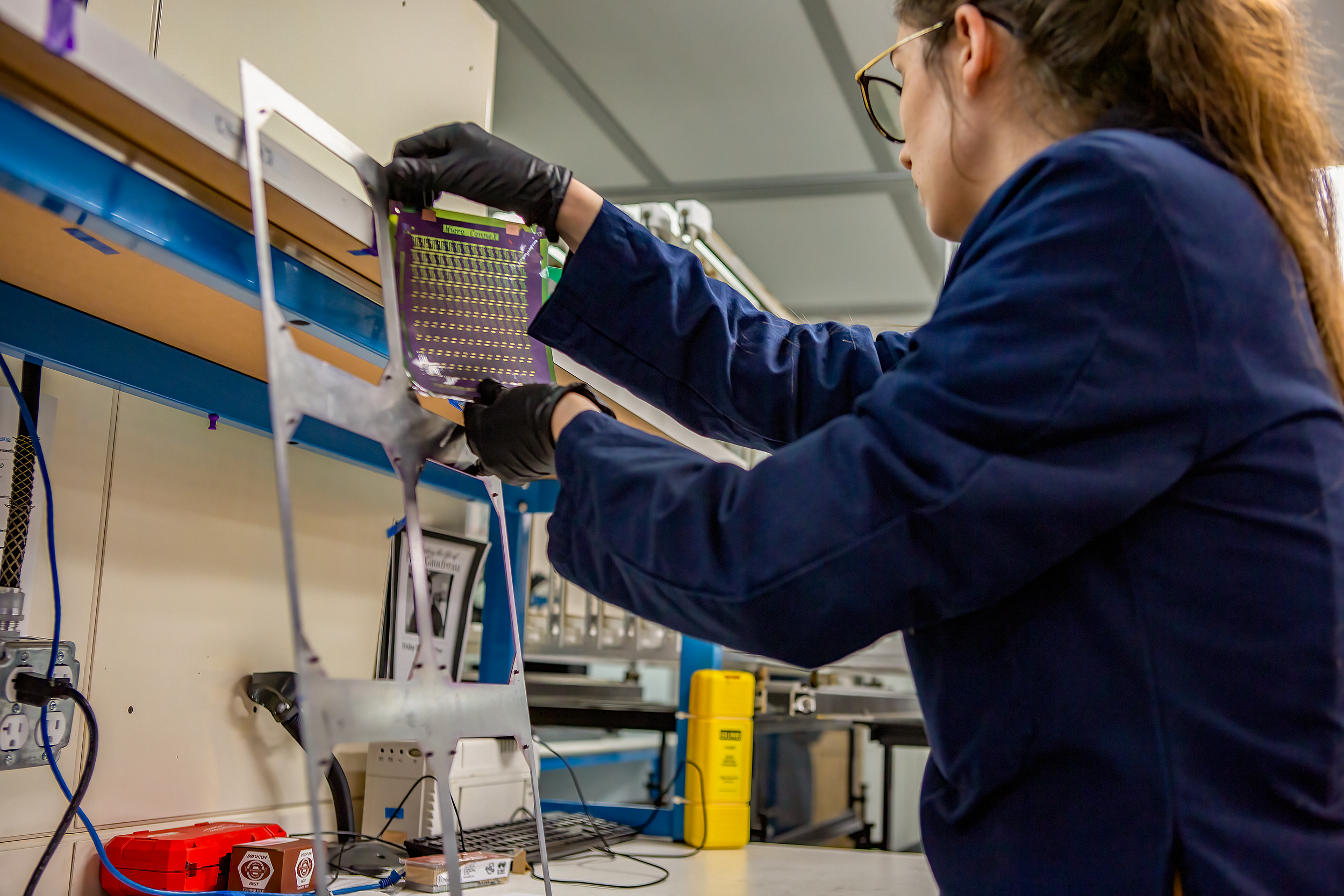

A woman working in a laboratory, placing or adjusting a circuit board on a rack. She is wearing glasses and black gloves, with various electronic equipment and tools around her.

Let’s Work Together.

Share your challenge. We'll develop a custom solution.
