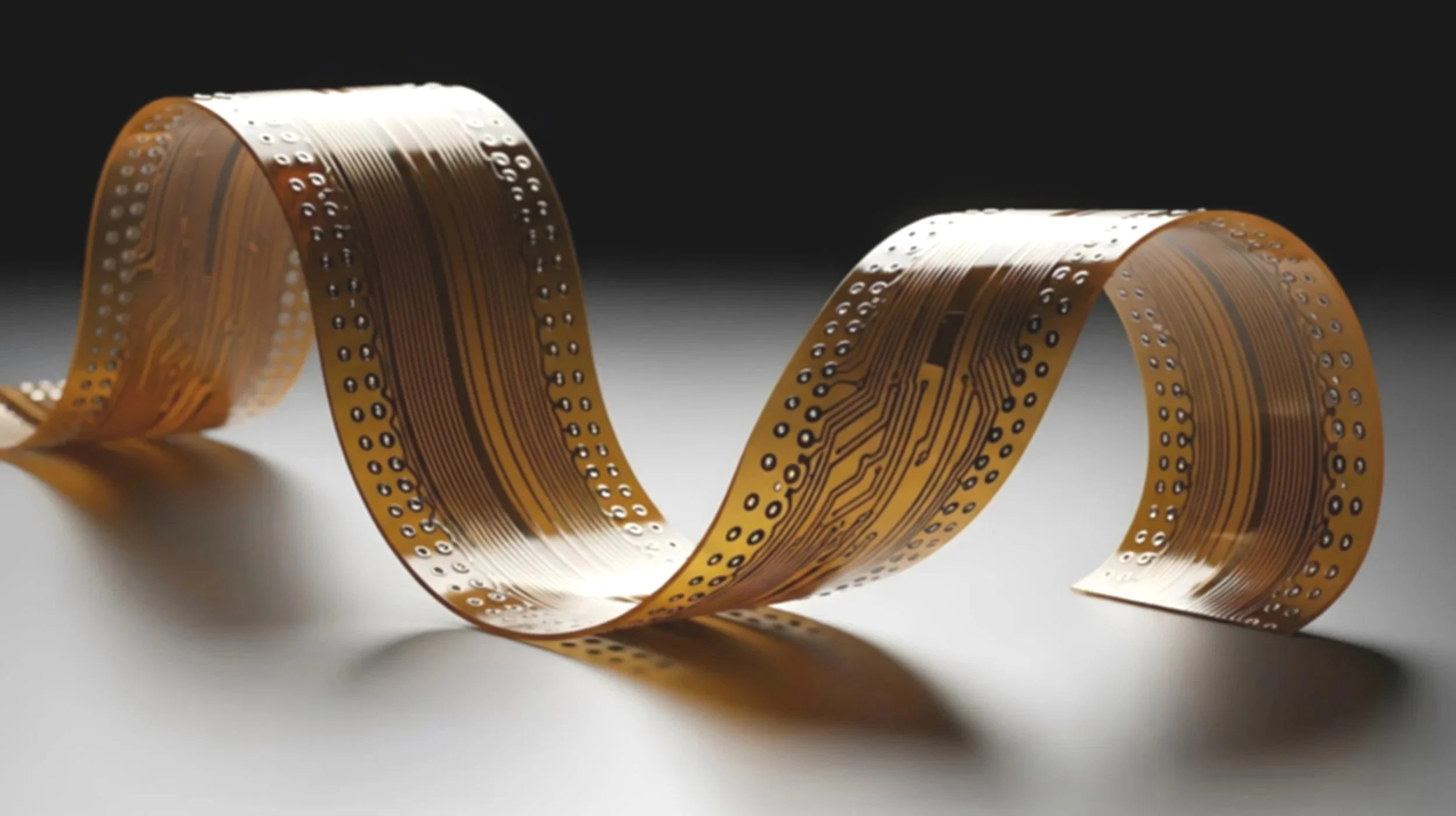

A close-up of a flexible circuit board with electronic components, curled into a loop against a dark background.

Platforms

Flex Circuits. Reimagined Lighter. Engineered Stronger.

Our technical teams can produce your flex prototype with varying degrees of complexity

Our flex circuit capabilities can meet rigorous requirements, such as:

  • 1 mil (25 μm) trace/space

  • 25 μm vias and critical dimensions of laser ablated features to 10 μm

  • Complex 3+ layer HDI flex circuits that other shops won’t touch

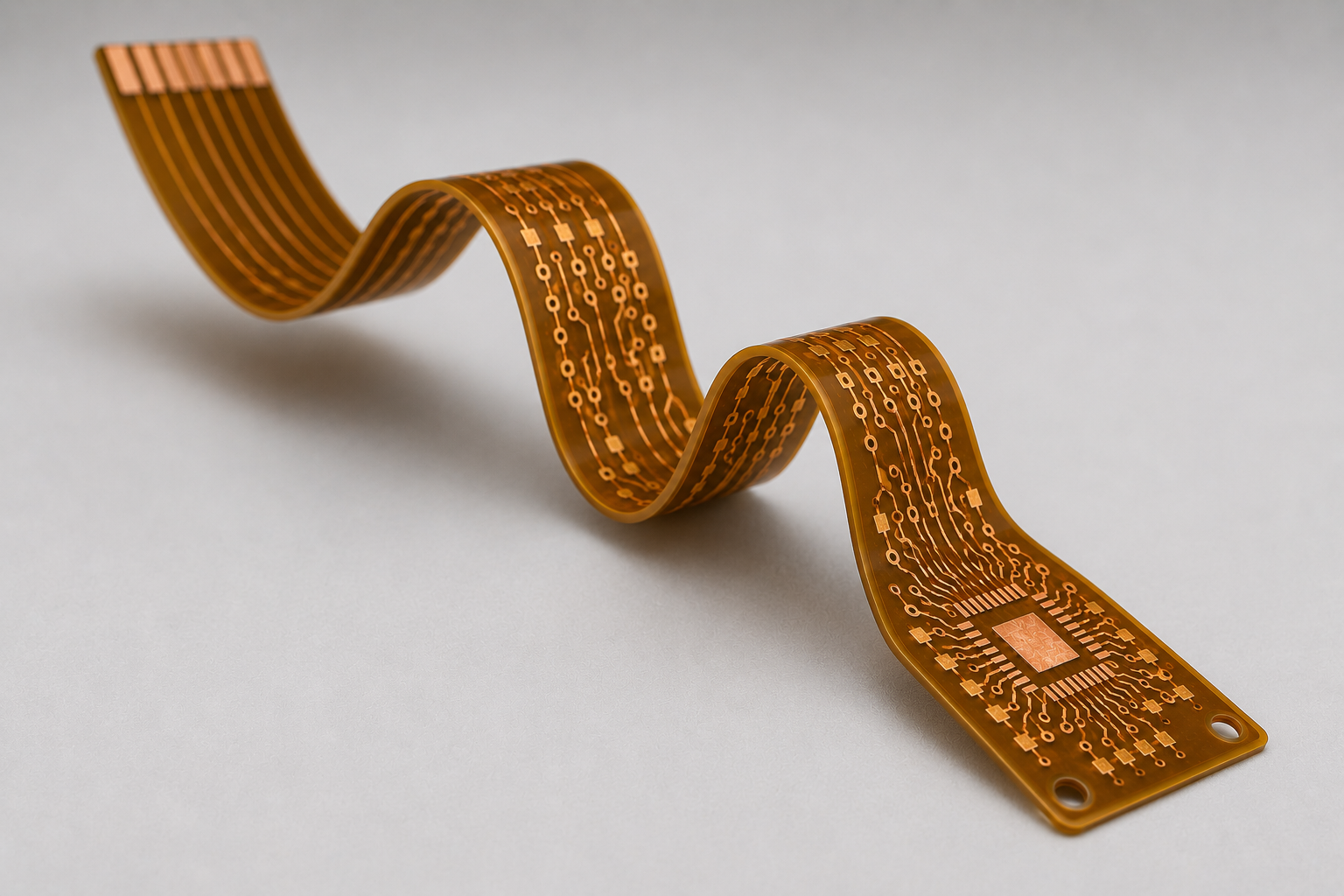

A flexible printed circuit board with a copper-colored surface and electronic components, coiled in a wave shape on a plain white background.

Need Long Flex? We Build It.

MicroConnex specializes in building long flex circuits designed for demanding applications where space, reliability, and signal integrity matter. Our advanced fabrication capabilities allow us to produce extended-length flex assemblies with consistent performance, tight tolerances, and excellent durability across complex routing paths. From prototype through production, we help customers push the limits of design with long flex solutions that enable more compact, efficient, and reliable systems.

Why Flex Circuits?

Thickness & Package Size

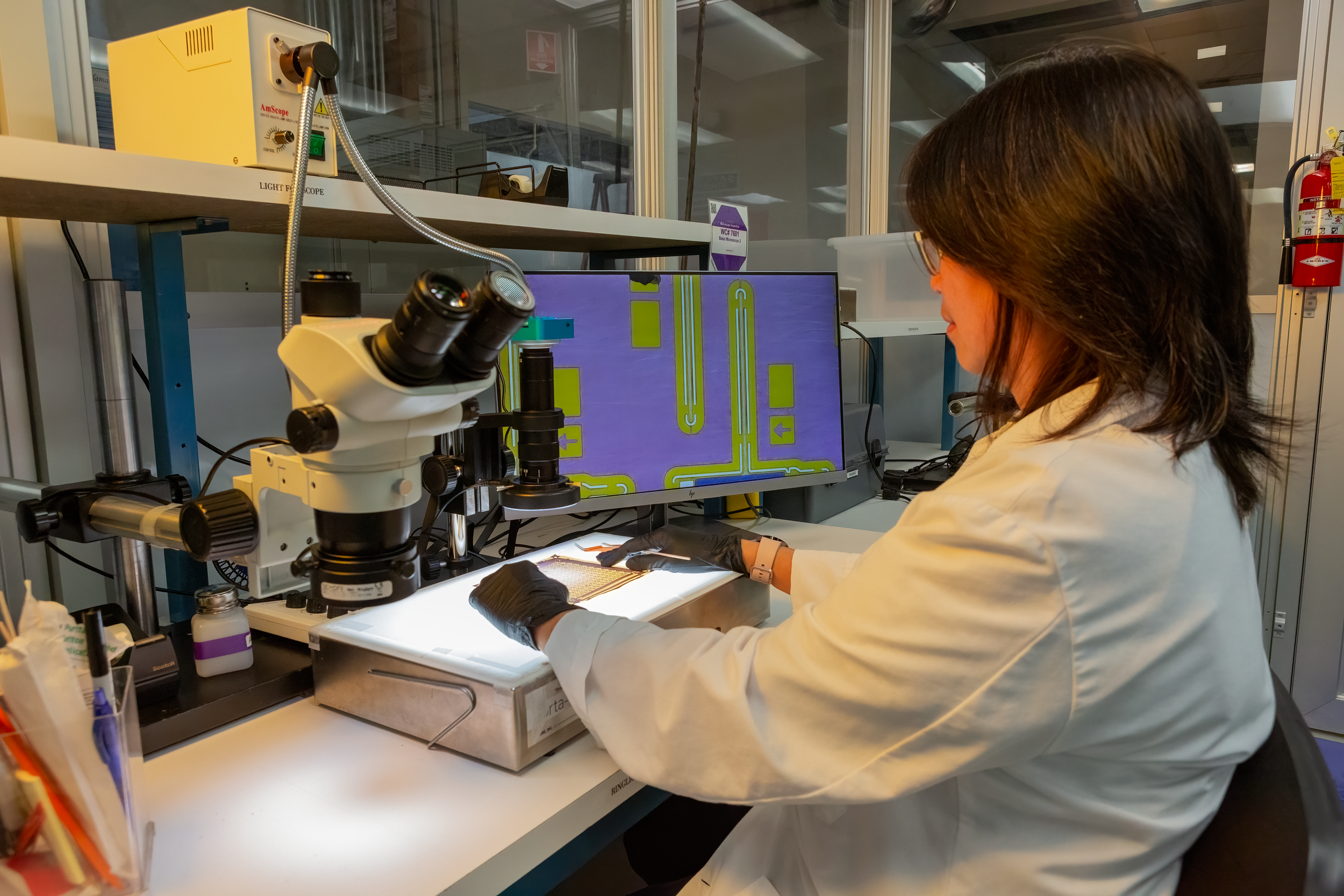

A scientist in a white lab coat working with a microscope and electronic equipment in a laboratory.

Because flexible circuits use the thinnest dielectric substrates available, it’s possible to produce flex circuits with a total thickness approaching 1 mil (25 μm), including a protective cover layer.

Reduction in Assembly Time, Errors, and Cost

Flex circuits can reduce product assembly time because they seamlessly integrate form, fit, and function into a single circuit. A reduction in assembly time also reduces manufacturing errors and costs.

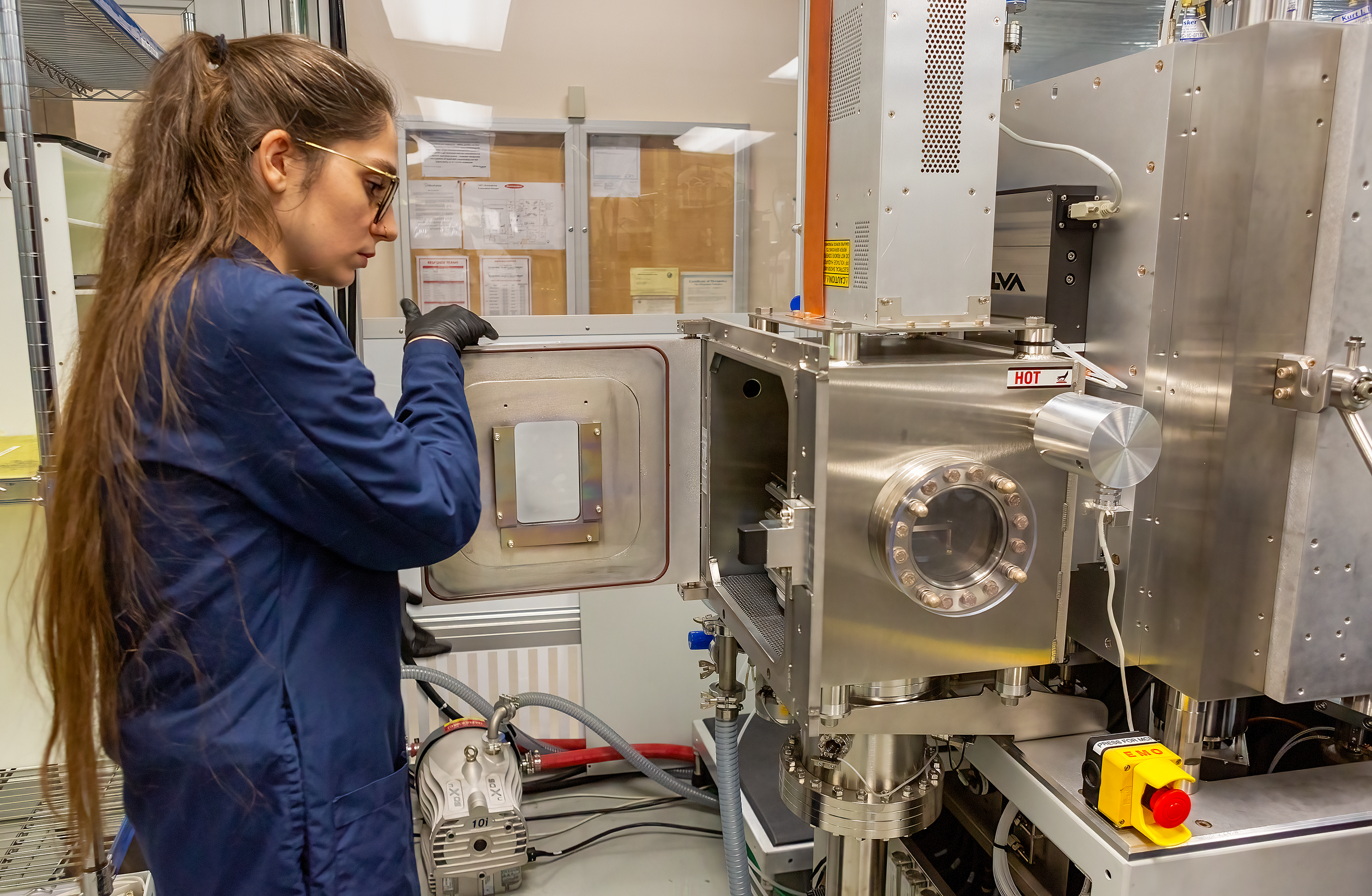

A scientist dressed in a blue lab coat, black gloves, and glasses working with a large piece of scientific equipment in a laboratory.

Weight

Smaller circuits are naturally lighter. Some applications result in a weight reduction of 50% or more over rigid or rigid-flex designs. Our dielectric material sets are thin in dimensional thickness and use lighter “copper weights,” resulting in a lightweight, highly flexible circuit construction.

Complete the Circuit.

Share your challenge. We'll develop a custom solution.
